RV-9A: Tailcone - 8/14/2008
Home Previous Entry Next Entry Back |
Share on:
|
|

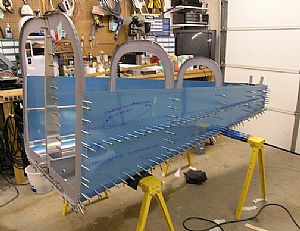

 Finished final drilling all of the Tailcone holes
This took quite a while to giter' done. I used a regular car crawler to drill the bottom of the tailcone. I marked as I drilled to make sure I got all the holes done.
|

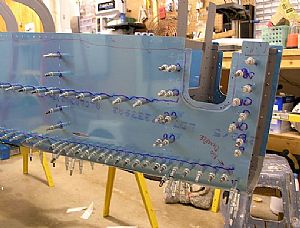

 Aft end fun
Drilling the side skin to the tailcone skin was pretty tough, especially since I had final drill through the side skin, then the tailcone skin and finally into the J stringer inside. I started on one end worked my way down, drilling one hole at a time and putting a cleco in every hole.
|

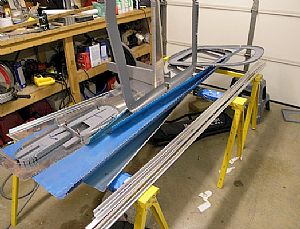

 Time for deburring and dimpling!
Now I feel like I'm moving ahead again. Boy, it's hot in this this damn garage, even with my portable Home Depot air conditioner running.
|
 The desire for aircraft manufacturing is strong in my family
My son took some of his spare Leggo parts and built this completely symetrical aircraft. I predict a Van's order form in his future!
|
