RV-9A: Flap Motor & Landing Gear Mounts - 12/15/2009
Home  Previous Entry  Next Entry  Back

Share on:

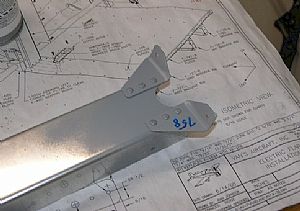

Riveted the F-758 bracket to the bottom of F-766ARiveted the F-758 bracket to the bottom of F-766A
No biggie here. I used my pneumatic squeezer to attach these brackets.

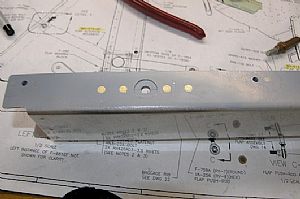

Started work on attaching the nutplates to F-766AStarted work on attaching the nutplates to F-766A
I decided to countersink the F-766A for the nutplates. The thickness of this material seems to be just right for this.

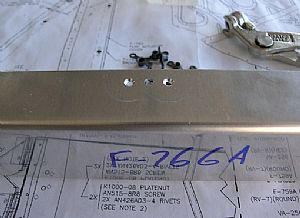

Done!Done!
I have decided to change my mind about priming the whole part on the inner fuselage. I am pretty much only priming where metal gets riveted to metal and leaving the rest for the painting of the interior later. So here, I've primed the nutplates and the countersink holes on the reverse side of the F-766A.

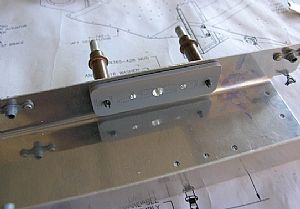

Time to fit the F-766C plate to the F-766A channelTime to fit the F-766C plate to the F-766A channel
I decided to read ahead on this part after some problems that other builders had with this installation on their websites. The instructions are wrong for this installation. They state "Centerline the F-766C plate and match drill it to the F-766A channel. Rivet the pieces together and drill the bolt hole full size." If you rivet the pieces together and then drill the bolt hole, there is no way to expand the size of the hole in the F-766A channel to 5/8" to accomodate the nut that will be installed later. Keep reading below and you'll see what I'm talking about. The picture shows where I clecoed and drilled the F-766C plate using the holes in the F-766A as a drilling guide. I also went ahead and drilled the 1/4" bolt hole in the middle.

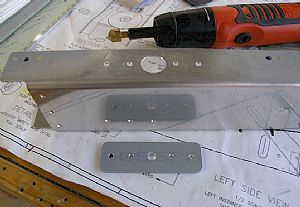

Here's the flip sideHere's the flip side
The F-766C plate now has all the holes it needs for installation.

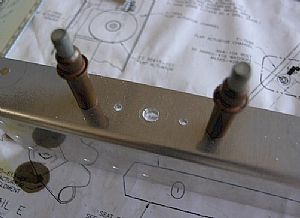

Now it's time to enlarge the hole in the F-766A channelNow it's time to enlarge the hole in the F-766A channel
You can see here that if you had riveted the F-766C plate to the F-766A as stated by the instructions, there isn't any way in hell that you could have enlarged the hole in the F-766A channel. So here I used my unibit (at a really slow speed) to make the hole 5/8" in the channel.

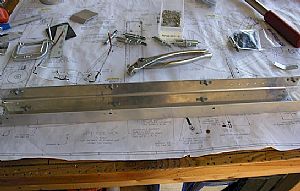

Now, it's time to rivet the F-766C plate to the F-766A channelNow, it's time to rivet the F-766C plate to the F-766A channel
I countersunk the holes into the F-766A channel and into the F-766C plate for the rivets and used my pneumatic squeezer to set the rivets.
