RV-9A: Ailerons - 5/23/2007
Home  Previous Entry  Next Entry  Back

Share on:

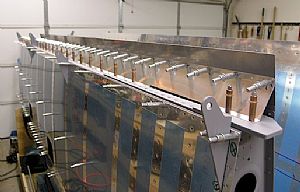

Started on the flap and aileron gap fairingsStarted on the flap and aileron gap fairings
I clecoed on the fairings and started final drilling the top 3/32 holes.

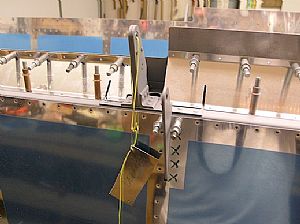

Some holes to be drilledSome holes to be drilled
On each side of the aileron bracket, I will need to drill the holes into the spar using the flap and aileron gap fairings as a drill guide. You will also notice that I have a reminder to me hanging from the aileron bracket to be sure and to create the aileron stop out of the delrin rod I bought from Aircraft Spruce.
