RV-9A: Left Fuel Tank - 5/24/2006
Home Previous Entry Next Entry Back |
Share on:
|
|

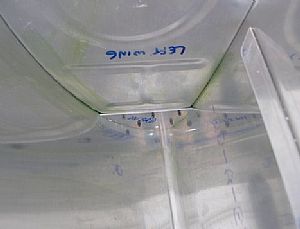

 Final drilled the T-905 tank attach angle to inboard tank rib
A regular #30 bit wasn't longer enough so I used one of my 12 inch bits from Averys.
|
 Preparing to shape the T-410 reinforcement plates

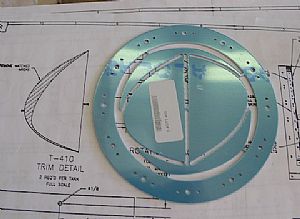

There are 4 of these ear-shaped plates. One goes on each end of the tanks. They have to be popped out of the T-407 tank reinforcement ring for shaping.
|

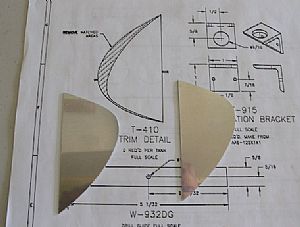

 Here they are, ready for fitting
The instructions say that they should fit closely to the skin. So I when I cut them out, I did rough cuts slightly bigger than the drawing. Then I slowly trimmed the edges until I got a tight fit against the tank skin. The bench sander worked great for this.
|

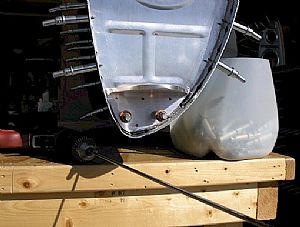

 Final drilled the inboard T-410 reinforcement plate
I'm sure these plates are used to plug up the holes in the front of the outer tank rib when gooped up with the Proseal.
|

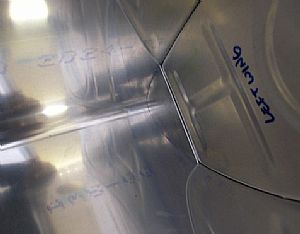

 Check the final fit of the outboard T-410 reinforcement plate
Looks good. Now for the plumbing.
|
