RV-9A: Left Wing Prep - 3/14/2006
Home  Previous Entry  Next Entry  Back

Share on:

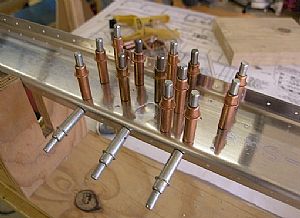

Started work on the W-907D and W-907E doubler platesStarted work on the W-907D and W-907E doubler plates

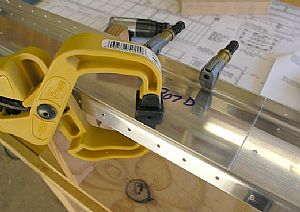

I clamped the doubler plates onto the aft side of the rear spar. The W-907E plate goes on the end of the spar, flush with the end. The W-907D plate goes on the middle of the spar, 44 3/4 inches from the end of the spar.

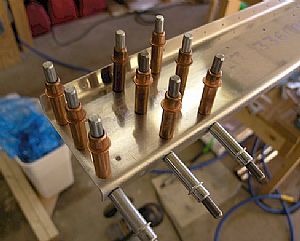

Drilled all the holes into the doubler platesDrilled all the holes into the doubler plates
I flipped the whole thing over and used the existing holes in the spar as a template to drill the holes in the doubler plates. I drilled the #40 holes into every other hole on the flange first and then put clecos into the new holes. Then I switched to a #30 bit and drilled some of the holes on the web of the spar in a wide spread, putting clecos in each hole as I went. Then I removed the clamps and drilled all the holes that were left.
Did the same for the end doubler plateDid the same for the end doubler plate
