Time for the Headset Plugs

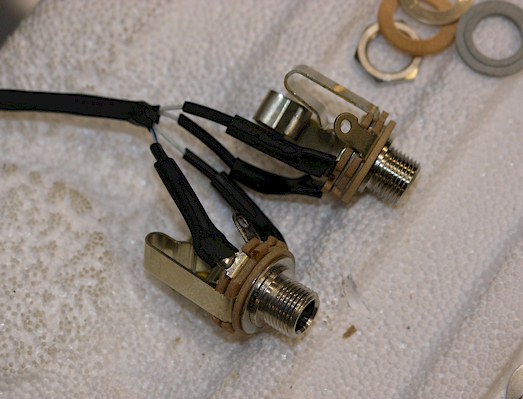

Here are the headset plugs all wired and ready to install. I forgot to take pictures of my wire runs from the intercom to the arm rests and the control sticks. Sorry bout' that. If you decide to use Van's wiring harness for the intercom, the instructions are very clear on how to run all the wires in the harness.
