Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

Time to cut the holes for the Intercom and the ELT remote control

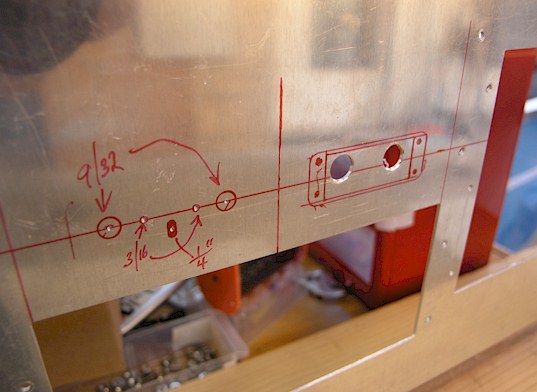

There a lot of options in the instructions for mounting the Intercom. The one I chose was the one where you cut holes big enough for the nuts on the squelch and volume control to go through the panel. I put the intercom on the left and the ELT remote on the right, above the radio and the transponder. Here I've used my hole punch to mark where I will drill holes in the panel for the intercom. I used my unibit to make two holes in the panel so I can make the cutout with my jigsaw for the ELT remote.
