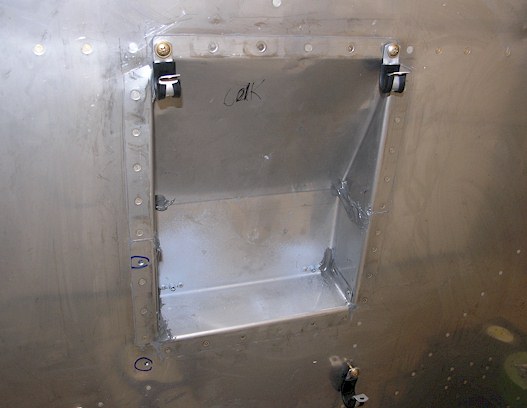

Riveted the firewall recess
There's a lot debate about when to put this dude in. Since I'm putting in my battery box and relays now, that pretty much clinched it for me, since the recess has to be in place to install the nutplates for these guys. I mixed up some proseal and clecoed the recess in place and then cleaned off the ooze proseal excess. Then I riveted it in place the next day.
