Time to do the circular cutout on the F-793 Vent attach angle

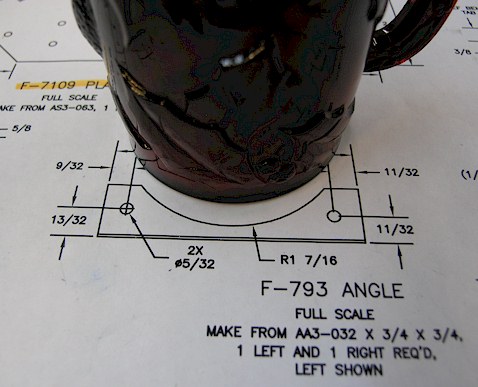

I made the F-793 angles yesterday but forgot to take pictures of them. Today I'm putting the cutout in them so they can fit snug up to the SV-1 Inlet Vent. I find making radius cuts easy, because I cheat. I grabbed a wide array of cups from the kitchen and found one that pretty much matches the drawing and then traced the edge onto the F-793 angle.
