Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

Started work on attaching F-785B attach angle to the F-785A backrest brace

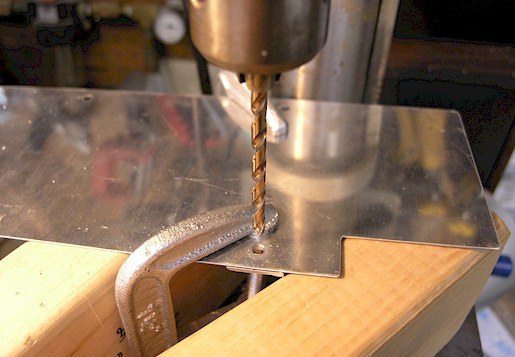

This is another confusing task. Before you can attach the F-785B attach angle to the bottom of the F-785A backrest brace, you have to drill the holes in the F-785B attach angle, using the floor channel cover plate as a drill guide. These holes have screws that go into them, attaching the angle piece to the channel cover and the floor ribs. The drawing shows where to draw a line on the F-785B attach angle so you can line it up with the floor channel cover screw holes.
