RV-9A: Project Entry
Share on:
Share this! Twit this!

More work on the seat backs

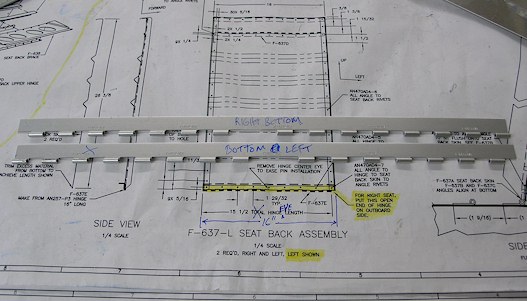

I started with the bottom hinges and almost cut them too short. The drawing is misleading (almost wrong). It says that the total hinge length is 15 1/2 inches. This measurement is referring to the length of the eyes of the hinge not the hinge tab. The "total length" of the hinge is actually 16 inches (the whole hinge, tab included).
