Here's the scoop on the F-996C Reinforcement Angle

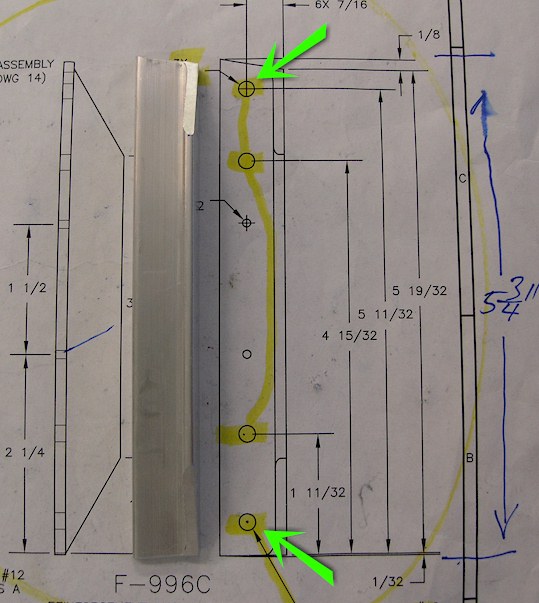

Yesterday I created the right F-996C Reinforcement Angle, the F-996B Spacer and drilled everything to the F-9101 web and the side fuselage skin. So today I'm taking pictures of the whole process for the left side in case someone else hits this road block in construction and needs help. In summary, the whole issue with this part of the construction is that the measurements on the drawing depicting the end holes in the F-996C Reinforcement Angle are incorrect. The end holes depicted in the pictorial on the drawing are incorrect as well. However, it appears that measurements for the overall length of the angle are correct. All the hole measurements between the end holes seem to be correct as well. Here, I have created (another) F-996C reinforcement angle without any holes in it.
