Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

Time to trim the F-623 ribs

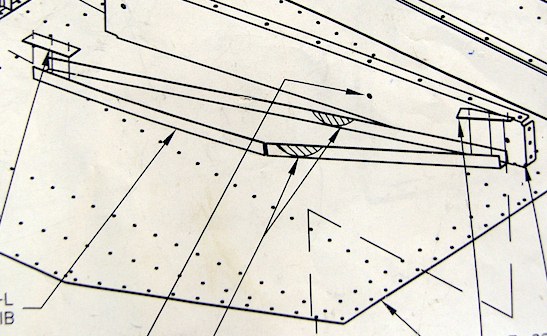

I'll be glad to be through with these ribs. The instructions are very vague. I read another builders log where he noted that the directions must have written by Picaso. I need to trim the flanges to make room for the foot steps. There are no dimensions, no directions; only a this drawing which (to me) implies to "eye-ball" the center of the cut-out and make plenty of room for the foot step pipes. The drawing shows a rather large cuttout area, much more than needed to make room for the foot step pipes.
