Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

Started drilling the F-634 seat belt anchors

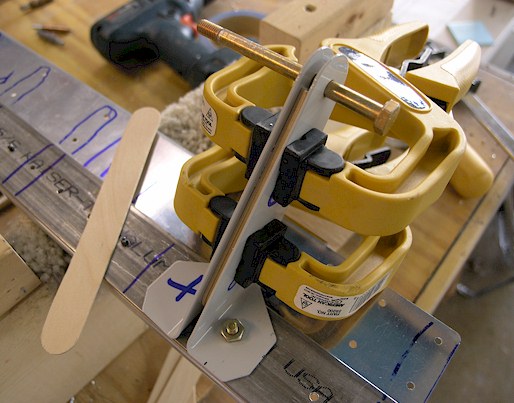

I drilled one side of each anchor pair according the instructions on the drawing and bolted it to the F705 assembly. The instructions say to put a 3/16" spacer between both anchors in order to set up the drilling of the whole in the other bracket. It just so happens that tongue depressors are exactly 1/16 of an inch thick. So I put three of them together to make the spacer. Very cool.
