Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

Started work on the F-750 Bulkhead

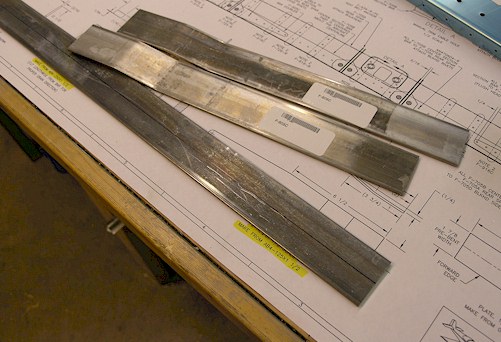

I cut the F-705B Center Section Bar according to the length in the drawing. Then I marked a lengthwise centerline with a sharpie on the rear face of the bar. After a bit of searching, I found the F-605C Bar Doublers. The plans call for these dudes to be trimmed down, but I'm going to wait until I get all the holes drilled. It will make it easier to line them up to the F-705B Center Section Bar.
