RV-9A: Project Entry

Share on:

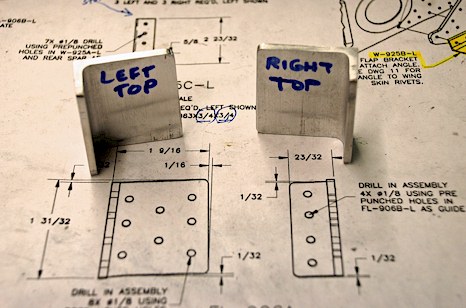

Fabricated the FL-906A angle
This was a real time consumer. First to get all the intricate measurements right, cut each one out on the bandsaw, do a rough smoothing on the bench grinder, and then finally smoothing everything over with the scotchbrite wheel. Also, the angles on these pieces are not at a 90 degree angle, they are specially formed to match the inboard end rib on the flap that goes off at an angle.
