RV-9A: Project Entry

Share on:

Starting drilling and clecoing the flap brackets on

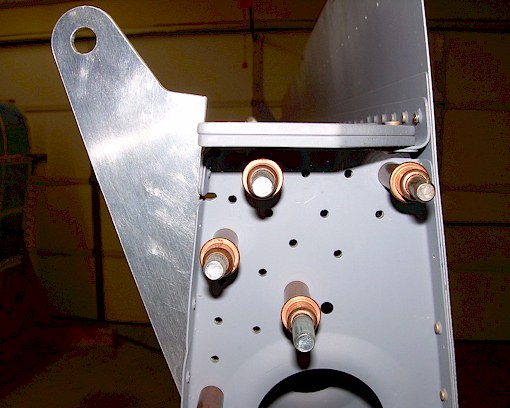

Heading scratching time again. This first part was easy, clecoing on the big flap bracket. The holes in the end rib were predrilled, not so on the other 2 flap brackets. These ribs have 2 pilots holes only, to establish the initial position of the flap bracket. Now to figure how to position those small W-925B and W-925C angles.
