Marked the T-912 attach angles

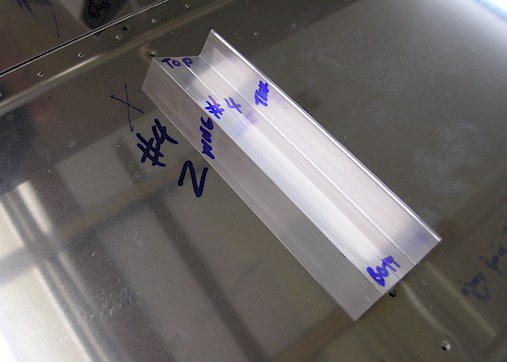

I marked the "Z" attach angles with everything I could think of, "top", "bottom", "wing", "tank" and a number to associate the angle with it's spot on the back tank baffle.
