Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

Started on the Right Wing!

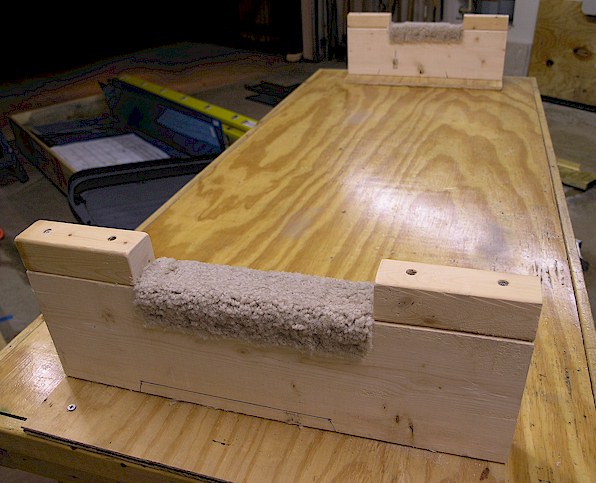

Now that I have gone through the building process with the left wing, I going to approach several things differently with the right. I decided to build these table jigs to hold the main wing spar upside down so I can see what I'm doing while putting on the nutplates. The jigs are made from 2x6's, 2x2's, 2 small pieces of 1/2" plywood and some old carpet. I screwed the 2x6's to the plywood, and then screwed the 2x2's to the 2x6's, and then screwed the plywood to the work bench. Then I stampled some carpet onto the 2x6's to protect the spar.
