Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

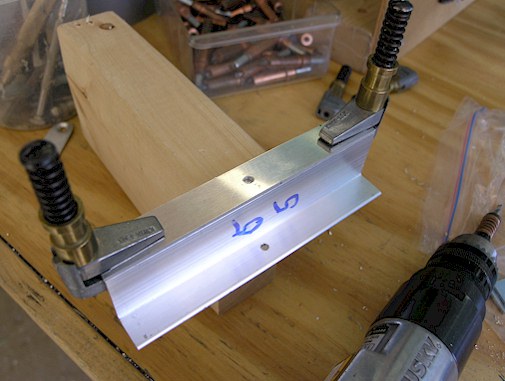

Used the W-932DG Drill Guide(s) to drill the holes on the flanges of T-912 Attach Angles
6 of the 7 T-912 attach angles get holes in both the flanges. The 7th angle only gets one hole. There are 4 W-932DG Drill Guides in the kit. I supposed that's because they tend to wear out during the drilling. I used 2 of the 4 drill guides on this tank. I'll use the other 2 on the other tank, when I get to it. I put a 2x4 under the flange during the drilling for some support.
