Smitty's RV-9A from Van's Aircraft

RV-9A: Project Entry

Share on:

Started work on the Left Tank T-902 baffle and T-912 attach angles

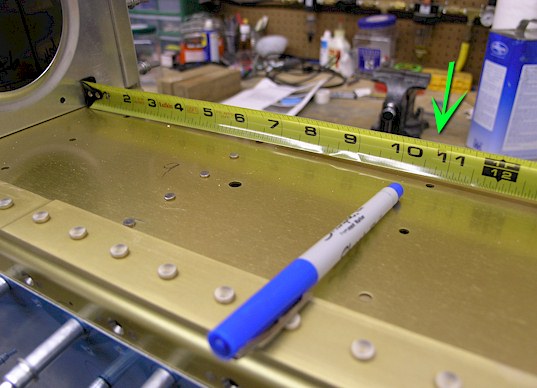

The T-912 attach angles are "Z" shaped parts that attach the back of the tanks to the main spar. I noticed on the plans that these angles don't all attach to the main spar the same way. The attach points to the main spar are either to the left or the right of the attach points on the tank back. So I marked where the attach points were on my ruler, starting at the inboard rib of the previously attached leading edge assembly.
