RV-9A: Project Entry

Share on:
Share this! Twit this!

One more modification

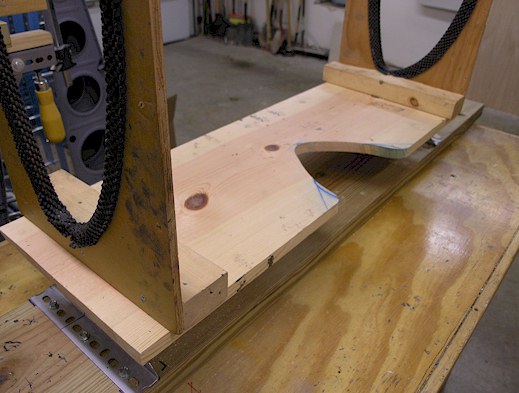

All of the ribs but the center one will be accessible by shifting the tank left and right in the jig. I made this cut-out on the 1x12 to allow me access to the bottom 3 rivets of the center rib on the top skin. The bottom skin will be easy to get to, so no cut-out will be needed on the other side.
