Made the cutouts for the wing spar

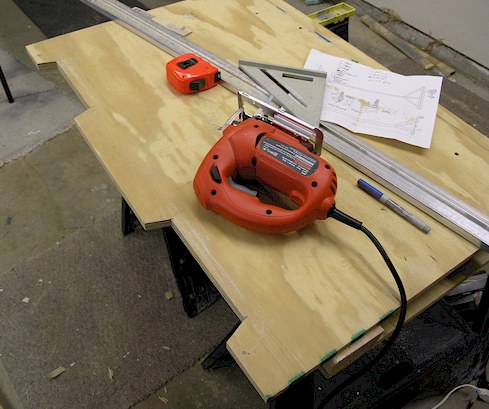

I used my variable speed jig saw to cut out the 2 insets in the plywood where the wing spar will rest. The cuts are 1 1/2" deep. The width of the bottom of the cut is the same as the width of the spar, plus a quarter inch on each side, to allow room for the carpet that will go over the cutout. The outer cuts are at a slight angle to allow easy removal of the wing spar. Each cutout is 4 inches from the outer edge of the plywood.
|
|
