Now for a leap into the FUTURE!

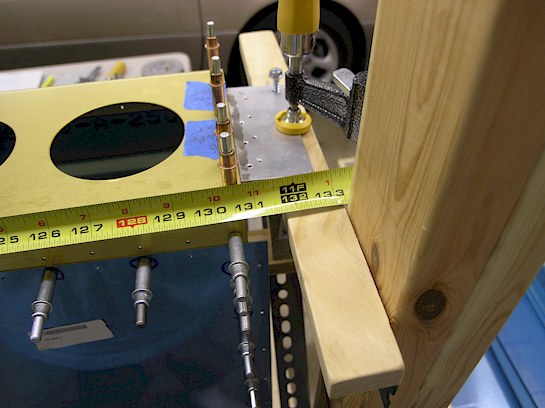

UPDATE 4/19/2006 - Now that I am working with this jig, I've decided to post the dimensions that I lucked out with for the jig. This shot is of the back of the jig on the outboard left wing, showing the distance between the main posts. As you can see, it's right at 133", or more. You can also see that I had to push the aluminum angle attachment out a little away from the jig arm, because the wing skin sticks out past the rib.
