Made the aileron and flap alignment tool

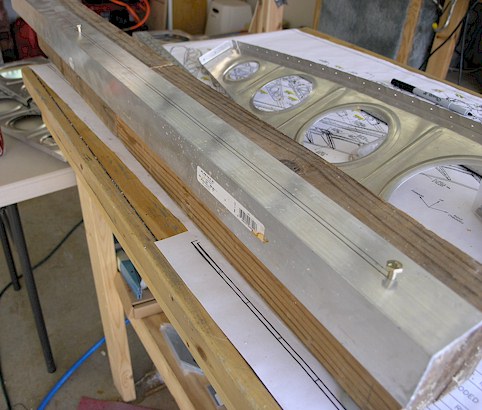

I had an extra piece of aluminum angle left and decided to use it to make this alignment tool. I laid the angle on a couple of 4x4s and then laid one of the W-912 main ribs on top of it. I drilled one hole on one end with a 3/16 drill bit, right thru the metal angle and into the wood. Then I held all of it in place by screwing one of the AN3 bolts into the hole, into the wood. Then it was easy do drill the other hole. Then I took the rib off and put the screws back in the angle and wood blocks. Then it was just a matter of drawing a line on each side of the bolts, using a long metal ruler. Then I flipped the angle over and drew the same lines on the other side. I'm not quite sure how this tool will be used later. Might as well be ready.
|
|
