RV-9A: Project Entry

Share on:
Share this! Twit this!

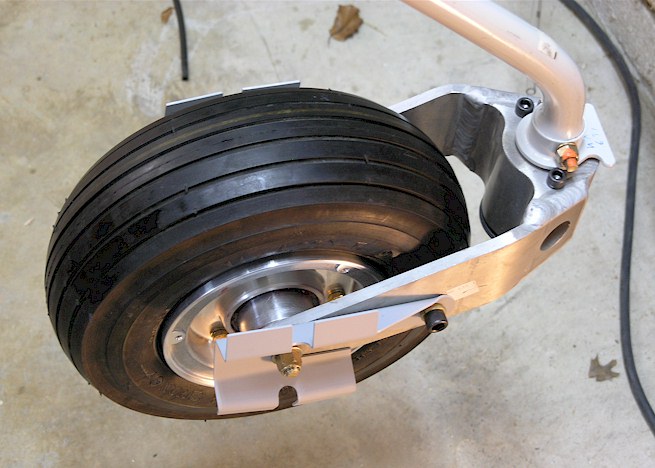

Mounted the tire and rim on the front gear

This was a little tricky, but doable. The wheel cover mounting flanges have to have part of them cut out to fit around the main rim bolt. The two inner washers are supposed to fit inside the cutout. The large washer is used to hold the flange in place.
