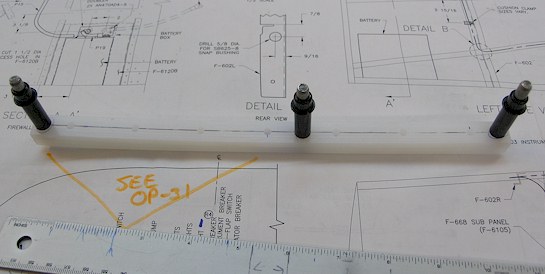

Drilled the holes in the UHMV bar
There are 2 UHMV (white plastic) bars that come with the wiring harness kit. The thin one holds all the screws which act as terminals to provide the positive power to the flaps, radios, panel lights, etc. The thicker one provides protection between the positively charged heads of the screws and the subpanel, to which it is mounted. Here I've drilled the holes through the thin bar, but only partially into the thick bar. This will mark the thick bar so I know where to bore the holes in the thicker bar to allow for the screw heads, but not allowing them to make contact with the subpanel.
|
|
