Time for the springs.

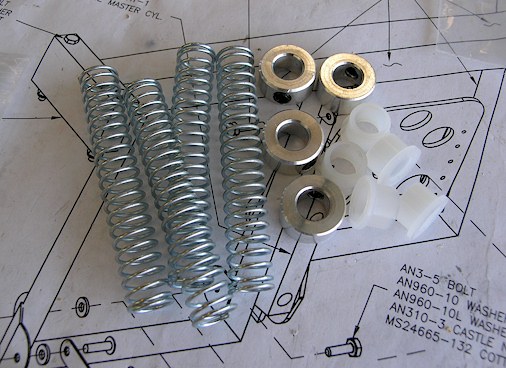

I had read on Vans Air Force where people were opting to put these springs on their master cylinders to insure the pedals would spring back after they are depressed. Actually most people spring back after being depressed! These parts are available at McMaster.com. Just do a search on these part numbers:
6389K625 - 1 Pack Nylon Bearing, Flanged, For 3/8" Shaft Dia, 1/2" Od, 3/8" Length
9657K115 - 1 Pack Steel Compression Spring, Znc-pltd Spring-tempered, 3" L, 1/2" Od, .047" Dia
9946K13 - 4 Each Aluminum Set Screw Shaft Collar, 3/8" Bore, 3/4" Outside Diameter, 3/8" Width
