Time to drill the rest of the holes

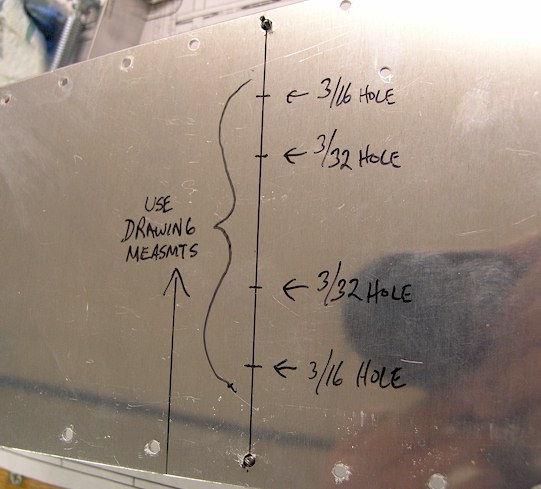

I clecoed the F-996C reinforcement angle back on to the F-9101 web, then flipped the web over and drew a line between the holes where the angle was clecoed on. Then, using the dimensions on the drawing, I marked the spots for the holes in the reinforcement angle on the back of the F-9101 web. Note here: I measured from the bottom of the F-996C reinforcement angle for these drill spots, not the edge of the F-9101 web. This was pretty easy, considering that the F-996C reinforcement angle sticks out a little, past the edge of the F-9101 web.
|
|
