RV-9A: Project Entry

Share on:
Share this! Twit this!

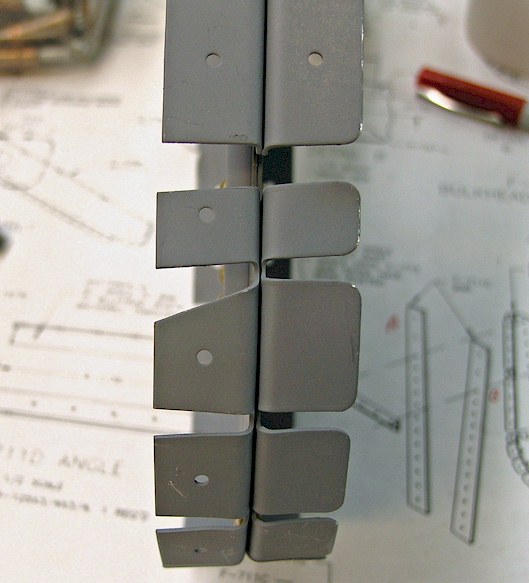

Here's how the drawing should have looked

Notice that the predrilled holes match the drawing and the "angle up" of both bottom flanges also match the drawing.
