Getting a mental picture of the L's and R's on the angle pieces

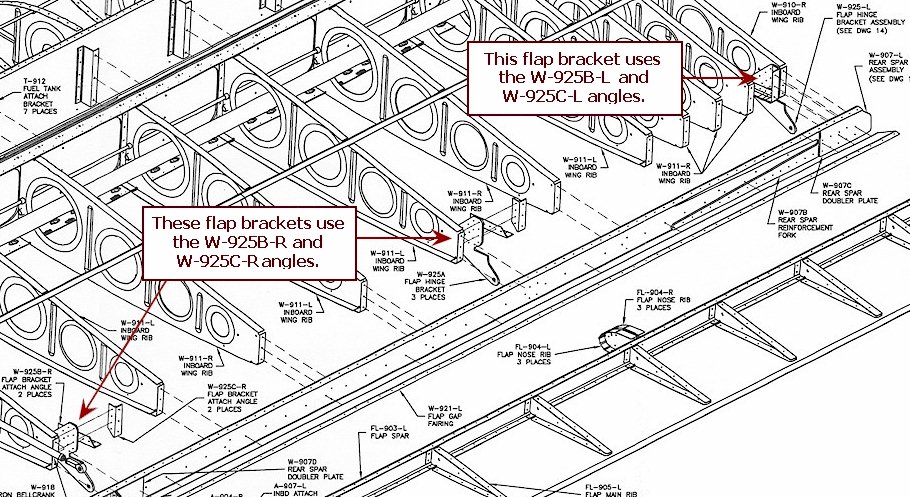

The answer to which angle pieces go where is a little vague on the plans, but it’s there. I remembered that when I organized the ribs for the wing that the "L's" and "R's" marked on the ribs didn’t mean Left and Right wing, they meant which direction the flanged on each piece was pointing. Same thing here. So I figured out that the W-925B-R and W-925C-R angles went on the 2 most outboard flap brackets, and the W-925B-L and W-925C-L angles went on the end inboard flap brackets. All of this is reversed on the right wing. Click on the image on the left to get the whole picture.
|
|
